Bolt Type Rotator

Bolt Type Rotator

During welding, grinding, or assembly operations, cylindrical workpieces such as pipes, tanks, and vessels are supported and rotated by a bolt type rotator, commonly referred to as a conventional bolted rotator. By enabling welders or automated welding systems to access the workpiece in the best possible position, this kind of rotator improves the quality of welds and boosts productivity.

Workpieces with varying diameters can be accommodated by manually adjusting the spacing between the rollers using bolts or other fasteners.

available in a variety of capacities, ranging from heavy-duty rotators that can manage several tons to compact pipe rotators ideal for light-duty applications.
MODEL RBTR-2 RBTR-5 RBTR-10 RBTR-20 RBTR-30 RBTR-40
RATED LOAD (Ton) 2 5 10 20 30 40
MIN JOB DIAMETER A 200 250 320 500 550 600
MAX JOB DIAMETER B 1800 2300 2800 3500 3800 4200
PU ROLLER OD C 200 250 300 350 350 400
PU ROLLER WIDTH D 80 100 120 120 130 140
METALIC ROLLER OD E 170 220 270 320 320 370
LINEAR SPEED (mm/min) 100-1000
SPEED CONTROL VFD
MOTOR POWER (kw) 2×0.25 2×0.37 2×0.55 2×1.1 2×1.1 2×1.5
FRAME LENGTH F 1400 1640 2050 2550 2720 3030
POWER WIDTH G 390 490 555 580 620 620
IDLER WIDTH H 325 340 370 450 470 470
TOTAL HEIGHT I 365 445 515 610 640 655
BODY HEIGHT J 118 147 147 175 175 179
CENTER DISTANCE OF ROLLER K 215-1015 275-1275 335-1595 430-1970 540-2080 425-2405

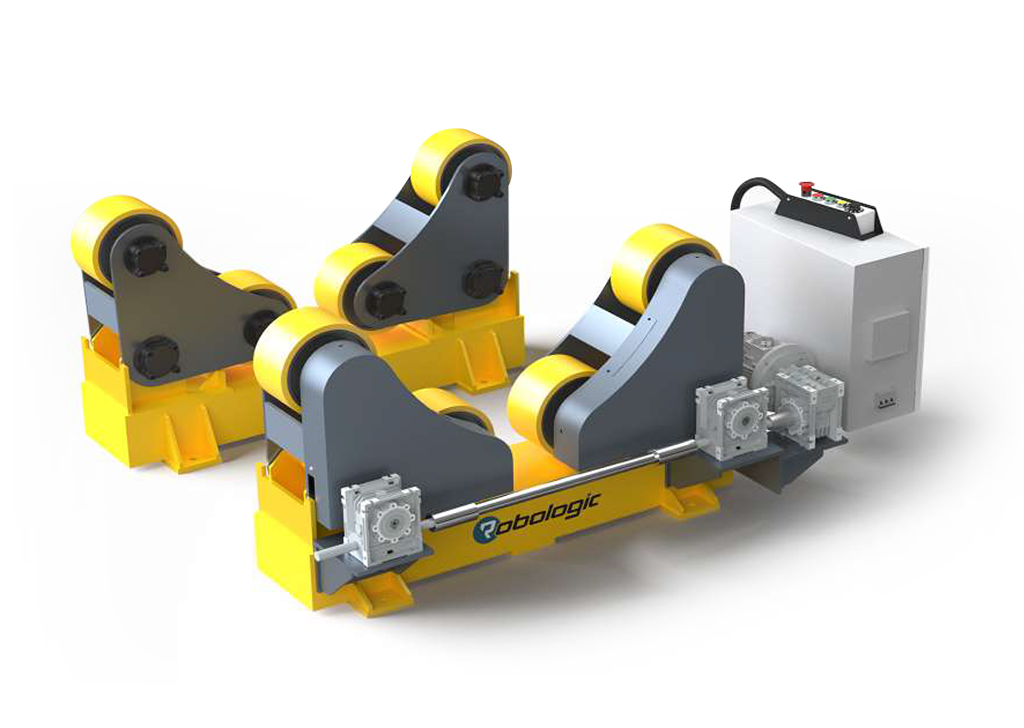

Self Aligned Rotator

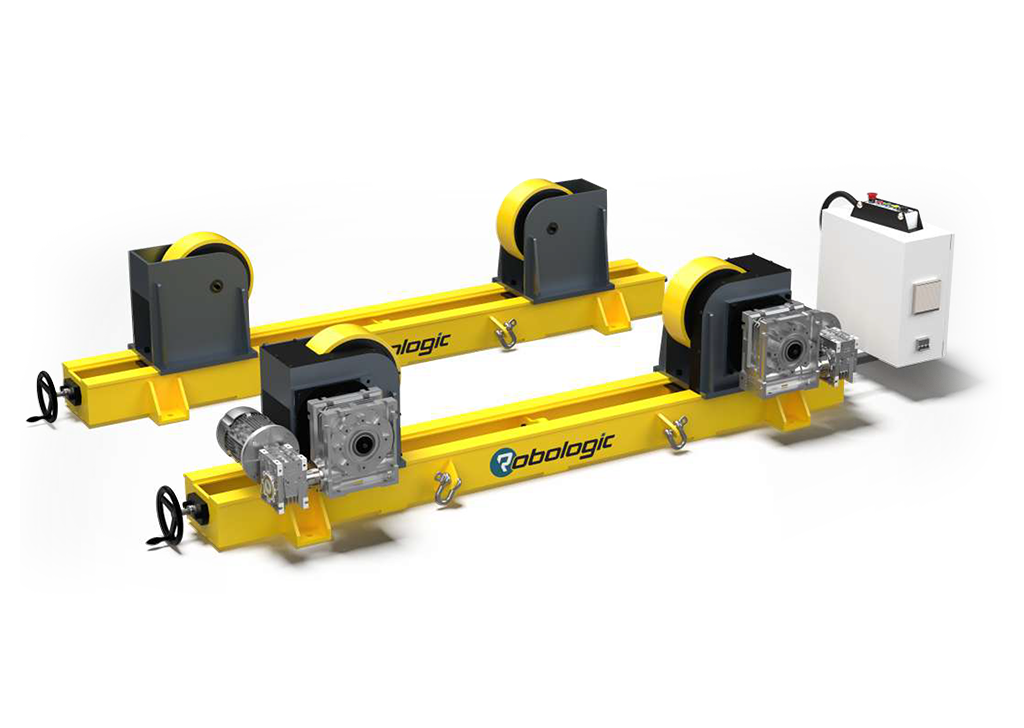

Self Centering Rotator (Screw Type)
